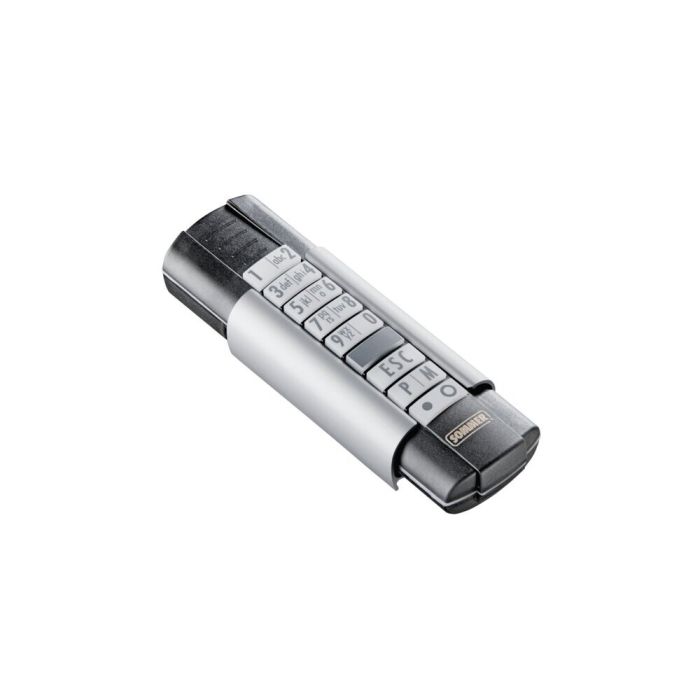

12-command handheld transmitter Telecody+ | black/silver
Telecody+ transmitter | 868,95MHz SOMMER version IP64 | anthracite/silver 12 command
Article number
S10212-00001
- Also ideal as radio code keypad
- With illuminated keys
- Memory locations: 10 different access codes and 2 unencrypted buttons, e.g. for light
- weather-proof; can be used indoors and outdoors
- Radio receiver confirms received commands, an LED on the transmitter acknowledges receipt
- further advantages of SOMloq2: Hop function
- Backward compatible with operators and radio receivers with the Somloq Rollingcode radio system (FM 868.8 MHz).
- including aluminium holder and mounting material
- Degree of protection IP64
- Range of approx. 50 m, depending on the surroundings
- Battery: 3 V, Type CR123A
- Dimensions: 147 × 48 × 30 mm
- Temperature range: −20 °C to +55 °C
| Radio frequency 1 | 868,950 MHz SOMloq2 |
|---|---|
| Radio frequency 2 | 868,800 MHz Somloq |
| Transmitter management | SOMloq2 868,3 / 868,95 / 922,5 MHz nur wenn MEMO-Steckplatz vorhanden |
| Battery type | CR123 A |
| Command | 12 Befehl |
| IP protection | IP 64 |
| Nominal voltage | 3 V |
| Temperature min. | - 20 °C |
| Temperature max. | 65 °C |
| Type | Description | Language | File extension | File size |
|---|
You can find further download documents, certificates and declarations of conformity in our download area.
Manufacturer
SOMMER Antriebs- und Funktechnik GmbH
Hans-Böckler-Straße 27
73230 Kirchheim Teck
DE
Product Safety
Further information in the instructions, not suitable for children under 12 years.
