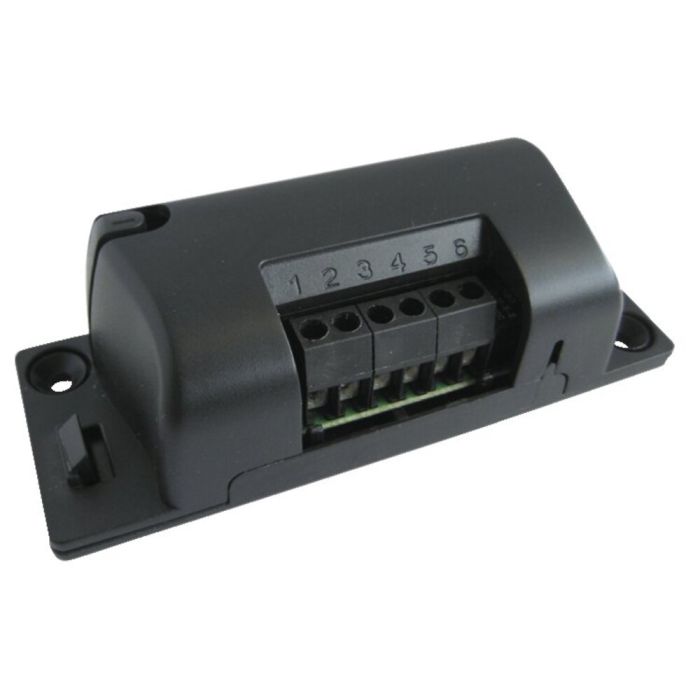

2-channel radio receiver module in housing with 112 radio commands
radio conversion receiver module | in housing, FM 868.8 MHz 2-channel ML | AC/DC 12...24V screwing terminal
Article number
4796V000
- suitable for other makes and special applications
- can be used universally with any control units
- integrated antenna; optional external antenna (# 7004) can be connected
- Power supply: AC/DC 12–24 V
- Control output: 2 potential-free relay contacts (normally open contacts, 1 A, DC 24 V)
- Dimensions: 109 × 40 × 32 mm
- Memory: 112 radio commands can be programmed
- Connection: 6-pin screw terminal
- Operating mode: Impulse mode (jog): Relay activated as long as radio signal is present
- not compatible with the Somloq Codemaster
| Radio frequency 1 | 868,800 MHz Somloq |
|---|---|
| Radio memory locations | 112 |
| Transmitter management | nein |
| Rated voltage range 1 | 12-24 V |
| Nominal frequency | AC/DC |
| Temperature min. | - 20 °C |
| Temperature max. | 70 °C |
| Type | Description | Language | File extension | File size |
|---|
You can find further download documents, certificates and declarations of conformity in our download area.
Manufacturer
SOMMER Antriebs- und Funktechnik GmbH
Hans-Böckler-Straße 27
73230 Kirchheim Teck
DE
Product Safety
Further information in the instructions, qualified electrician required for installation, qualified mechanic required for installation.
