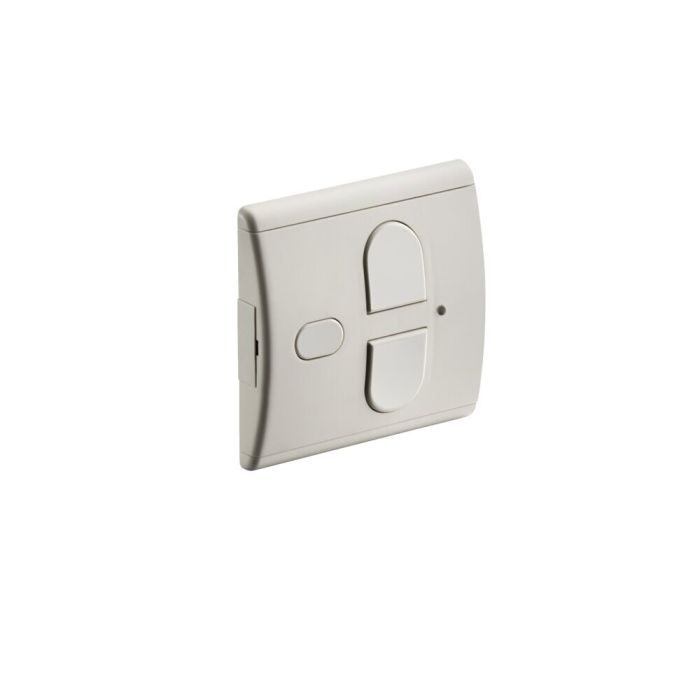

2-command wireless wall switch SOMtouch (surface-mounted) | white/white
SOMtouch radio wall push-button AP | 868,95MHz NEUTRAL-vers. ML | white/white 2-command | with status request
Article number
S10447-00001
- Battery-operated - no additional installation effort is necessary
- Option of querying gate position/receiver status without travel motion thanks to small button
- Feedback of radio commands with LED
- further advantages of SOMloq2: Hop function
- Remote addition and remote replacement possible
with transmitter management Codemaster+ - Range: approx. 50 m (depending on the surroundings)
- Battery: 3 V, Type CR2032
- Dimensions: 80 × 85 × 14 mm
- Area of application: dry, closed rooms
| Radio frequency 1 | 868,950 MHz SOMloq2 |
|---|---|
| Radio frequency 2 | 868,800 MHz Somloq |
| Transmitter management | SOMloq2 868,3 / 868,95 / 922,5 MHz nur wenn MEMO-Steckplatz vorhanden |
| Battery type | CR2032 |
| Command | 2 Befehl |
| Nominal voltage | 3 V |
| Temperature min. | - 25 °C |
| Temperature max. | 65 °C |
| Type | Description | Language | File extension | File size |
|---|
You can find further download documents, certificates and declarations of conformity in our download area.
Manufacturer
SOMMER Antriebs- und Funktechnik GmbH
Hans-Böckler-Straße 27
73230 Kirchheim Teck
DE
Product Safety
Further information in the instructions, not suitable for children under 12 years.
