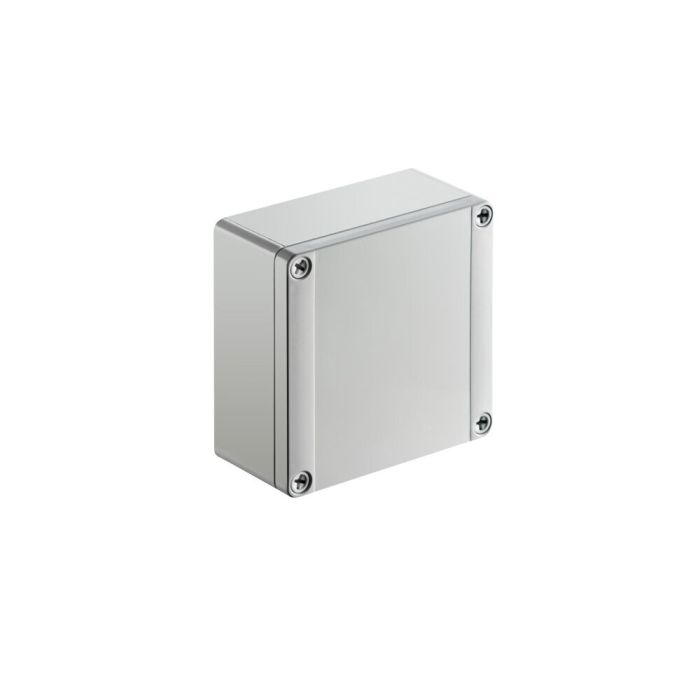

4-channel radio receiver SOMcom4
SOMcom4 radio receiver | 868,95MHz NEUTRAL version IP55 ML | grey 4-channel 40 memories
Article number
S10794-00001
- Simple conversion of external operators and easy changing of the radio frequency
- Suitable for special applications (not suitable as tubular motor controller)
- Optional feedback via transmitter when the sent command has been processed by the receiver
- Option of channel relay status query via transmitter (e.g. Pearl Status)
- Ideal as substitute for a rod antenna: increase in range due to hop function. There is no need to programme transmitters on the radio receiver.
- Integrated antenna
- Memory: 40 radio commands can be programmed
- Slot for Memo memory extension (450 radio commands)
- Power supply: AC 230 V or AC/DC 12–24 V ±20 %
- Area of application: indoor and outdoor use
- Control output: 4 potential-free relay contacts (change-over, 8 A, AC 250 V)
- Pulse input: connection option for a potential-free pulse input
- Connection: screw terminals
- connectible cable: up to 2.5 mm² diameter
- Temperature range: -25 °C to +65 °C
- Dimensions: 125 × 125 × 60 mm
- Operating mode:
– Impulse mode (jog): Relay activated as long as radio signal is present
– Defined ON/OFF: command for defined switch-on and command for defined switch-off
– Switching mode (toggle): Relay can be switched on and off via radio control system, like a surge relay
– Timed mode (Time): Relay is triggered with radio signal and deactivated after set time (1–255 s)
| Nenn.Spann.Bereich 1 | 12-24 V |
|---|---|
| Device Typ | SOMcom4 |
| Systemcode SOMloq2 | SOMMER |
| SOMloq2 compatible | ja |
| Gehä.Farbe Unterteil | grau |
| Gehä.Farbe Oberteil | grau |
| Strg. parametriebar | SOMlink |
| Temperature max. | 65 °C |
| Temperature min. | - 20 °C |
| Package size | 130x64x155 mm |
| Modulation Funk | FM |
| Memory locations radio | 40 |
| Transmitter management | SOMloq2 868,3 / 868,95 / 922,5 MHz nur wenn MEMO-Steckplatz vorhanden |
| Nennfreq. (Nenn.Span | 50-60 Hz |
| Nominal voltage | 230 V |
| IP protection | IP 55 |
| Channel | 4 Kanal |
| Somloq compatible | nein |
| Art des Produkts | Empfänger |
| Radio frequency 1 | 868,950 MHz SOMloq2 |
| Radio type | RX06-4-TRM02-868 |
