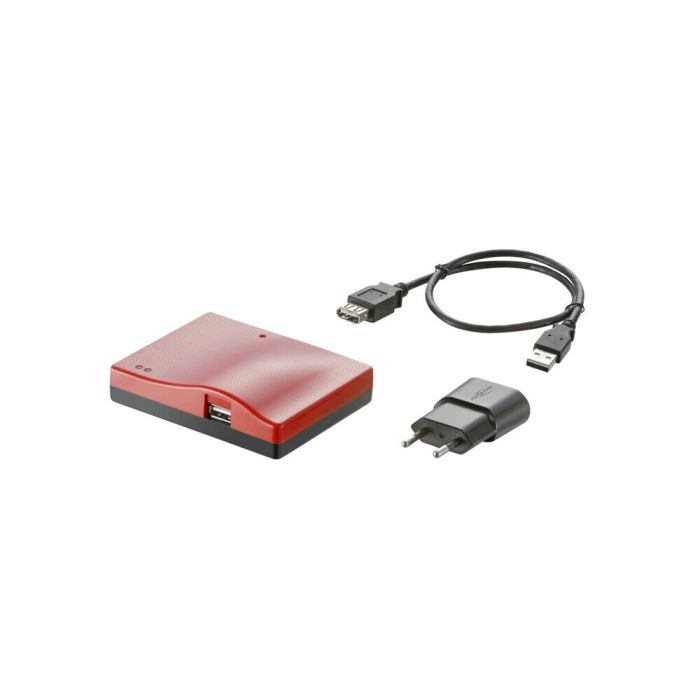

Transmitter management Codemaster S2
Managing objects such as underground parking has never been easier. The transmitters are conveniently organized and managed via the browser in the office. No separate software installation is required for this, since everything is integrated in the device.
Article number
S13571-00001
- Transmitter management; FM 868.95 MHz; WiFi
- No on-site Internet connection required! A direct WiFi connection is established between smartphone, tablet or PC and the Codemaster+.
- Option allowing organisation and management of transmitters from various objects via smartphone, tablet or PC
- For operators and radio receivers with radio system SOMloq2 and a Memo slot
- To find out whether your operator or radio receiver is compatible with the Codemaster+, see www.som4.me/sv
| Radio frequency 1 | 868,950 MHz SOMloq2 |
|---|---|
| Transmitter management | SOMloq2 868,3 / 868,95 / 922,5 MHz nur wenn MEMO-Steckplatz vorhanden |
| IP protection | IP 20 |
| Rated voltage range 1 | 100-240 V |
| Nominal frequency | 50-60 Hz |
| Temperature min. | 0 °C |
| Temperature max. | 40 °C |
| Type | Description | Language | File extension | File size |
|---|
You can find further download documents, certificates and declarations of conformity in our download area.
Manufacturer
SOMMER Antriebs- und Funktechnik GmbH
Hans-Böckler-Straße 27
73230 Kirchheim Teck
DE
Product Safety
Further information in the manual, skilled mechanic required for installation.
