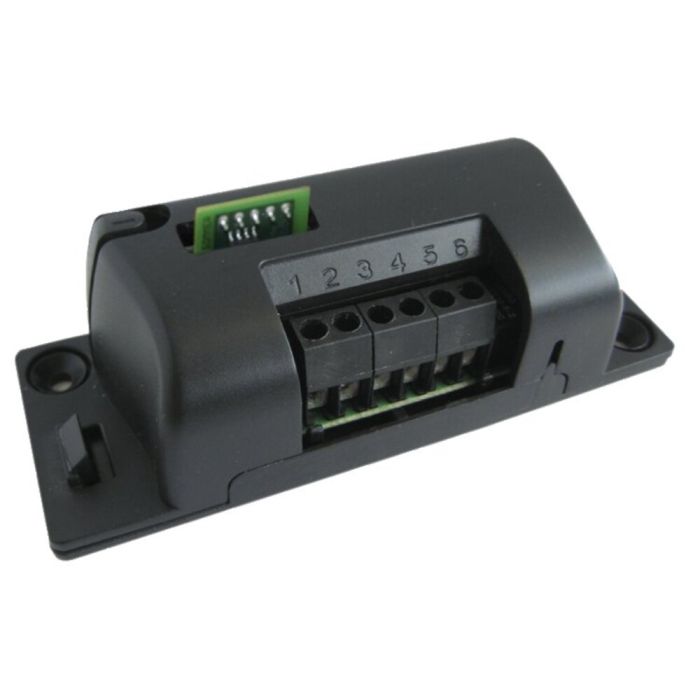

2-channel radio receiver module in housing with 448 radio commands
tip/toggle 448 programmable codes,
Article number
4796V002
- suitable for other makes and special applications
- can be used universally with any control units
- integrated antenna; optional external antenna (# 7004) can be connected
- Power supply: AC/DC 12–24 V
- Control output: 2 potential-free relay contacts (normally open contacts, 1 A, DC 24 V)
- Dimensions: 109 × 40 × 32 mm
- Memory: 448 radio commands can be programmed
- Connection: 6-pin screw terminal
- Operating mode: Impulse mode (jog): Relay activated as long as radio signal is present
- compatible with the Somloq Codemaster
| Radio frequency 1 | 868,800 MHz Somloq |
|---|---|
| Radio memory locations | 448 |
| Type | Description | Language | File extension | File size |
|---|
You can find further download documents, certificates and declarations of conformity in our download area.
Manufacturer
SOMMER Antriebs- und Funktechnik GmbH
Hans-Böckler-Straße 27
73230 Kirchheim Teck
DE
Product Safety
Further information in the instructions, qualified electrician required for installation, qualified mechanic required for installation.
