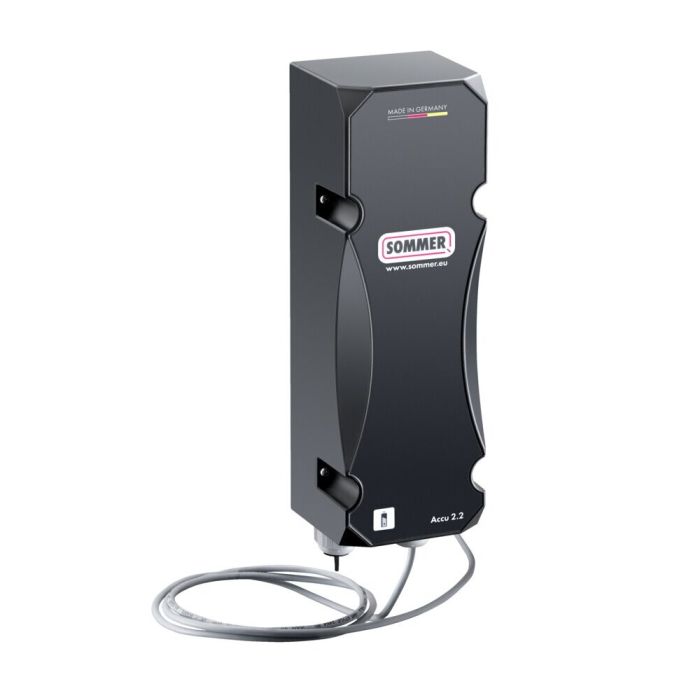

Emergency power supply Accu 2.2
Accu 2.2 | 24V 2200mAh 322x105x105 ML | incl. integrated charging electronics | ACCU PB INCLUDED
Article number
S12628-00001
- Provides emergency power supply for the operator for 36 hours and 75 door cycles (OPEN/CLOSE) (The performance of the battery is influenced by the external operational conditions. The data may therefore vary from the specified data.)
- 2,200 mAh; 24 V, PB
- Integrated charging electronics with plug connection
- Temperature range: −10 °C to +40 °C
- Dimensions: 322 × 105 × 105 mm
- Incl. 2,000 mm connection cable with 2-pin plug
- For SOMMER base+, pro+ and tiga, twist 200 E/EL and twist M/ML
- Note: Not compatible with the series equipped switch-mode power supply!
| IP protection | IP 54 |
|---|---|
| Nominal voltage | 24 V |
| Temperature min. | - 10 °C |
| Temperature max. | 40 °C |
| Type | Description | Language | File extension | File size |
|---|
You can find further download documents, certificates and declarations of conformity in our download area.
Manufacturer
SOMMER Antriebs- und Funktechnik GmbH
Hans-Böckler-Straße 27
73230 Kirchheim Teck
DE
Product Safety
Further information in the manual, skilled mechanic required for installation.
