PCB controller ST-C-1 STArter S2+

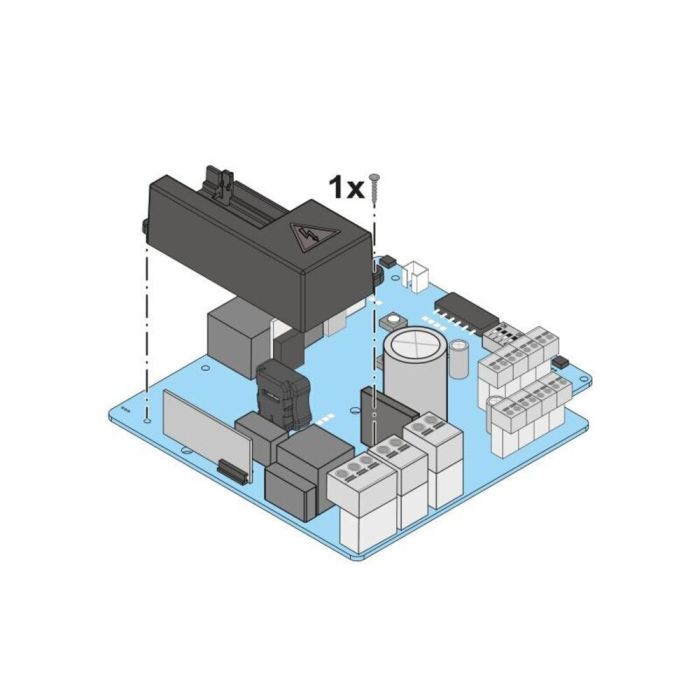

PCB controller ST-C-1 STArter S2+ | 868,95 MHz SOMMER version | incl. 1x contact protection 1x screw
Article number
S12869-00001
| Radio frequency 1 | 868,950 MHz SOMloq2 |
|---|---|
| Radio memory locations | 40 |
| Max. torque | 11 Nm |
| Transmitter management | SOMloq2 868,3 / 868,95 / 922,5 MHz nur wenn MEMO-Steckplatz vorhanden |
| Protection class | II |
| Max. travel length | 8000 mm |
| Max. opening speed | 210 mm/s |
| Standby power consumption | 3,00 W |
| Nennstromaufnahme | 0,4 A |
| Rated voltage range 1 | 220-240 V |
| Nominal frequency | 50-60 Hz |
| Max. gate weight | 400 kg |
| max. Stromaufnahme | 1,2 A |
| Duty cycle | ED 30% S3 |
| Temperature min. | - 20 °C |
| Temperature max. | 50 °C |
| Type | Description | Language | File extension | File size |
|---|
You can find further download documents, certificates and declarations of conformity in our download area.
Manufacturer
SOMMER Antriebs- und Funktechnik GmbH
Hans-Böckler-Straße 27
73230 Kirchheim Teck
DE
Product Safety
Further information in the instructions, qualified electrician required for installation, qualified mechanic required for installation.
