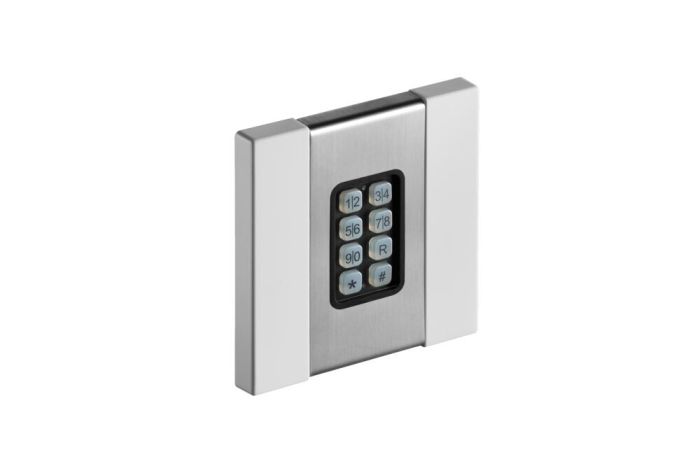

Radio code keypad ENTRAcode+ Flush-Mounted
ENTRAcode+ digital coder | 868,95MHz NEUTRAL version IP54 | white 5-command | cover for flush mount.
Article number
S11187-00001
- With its low installation height of 10 mm, it has an understated design that blends into the façade.
- Clear lines, a white housing and high-quality stainless steel trim for a timeless design
- Unlike wired systems, no short-circuiting or bridging possible
- Ideal for retrofitting thanks to radio technology
- For flush-mounted boxes in accordance with DIN 49073-1
- Flexible usage options, e.g. door operator, house door, lighting and alarm system can be controlled
- 1 command in Standard mode, 5 commands in Extended mode.
- Guest code function in Standard mode with simplified programming, for short-term rentals.
- Radio commands: 1–5
- Radio frequency: FM 868.95 MHz (SOMloq2), FM 868.8 MHz (Somloq Rollingcode)
- Range: approx. 25 m (depending on the surroundings)
- Dimensions: 94 × 94 × 10 mm
- Power supply: AC 12 V, DC 12–24 V
- Temperature range: −25 °C to +65 °C
- IP code IP65
- Scope of delivery: ENTRAcode+ core module with code keypad in flush-mounting housing, faceplate in brushed stainless steel
| Radio frequency 1 | 868,950 MHz SOMloq2 |
|---|---|
| Radio frequency 2 | 868,800 MHz Somloq |
| Transmitter management | SOMloq2 868,3 / 868,95 / 922,5 MHz nur wenn MEMO-Steckplatz vorhanden |
| Battery type | AA |
| Command | 1 Befehl |
| IP protection | IP 54 |
| Nominal voltage | 3 V |
| Temperature min. | - 25 °C |
| Temperature max. | 55 °C |
| Type | Description | Language | File extension | File size |
|---|
You can find further download documents, certificates and declarations of conformity in our download area.
