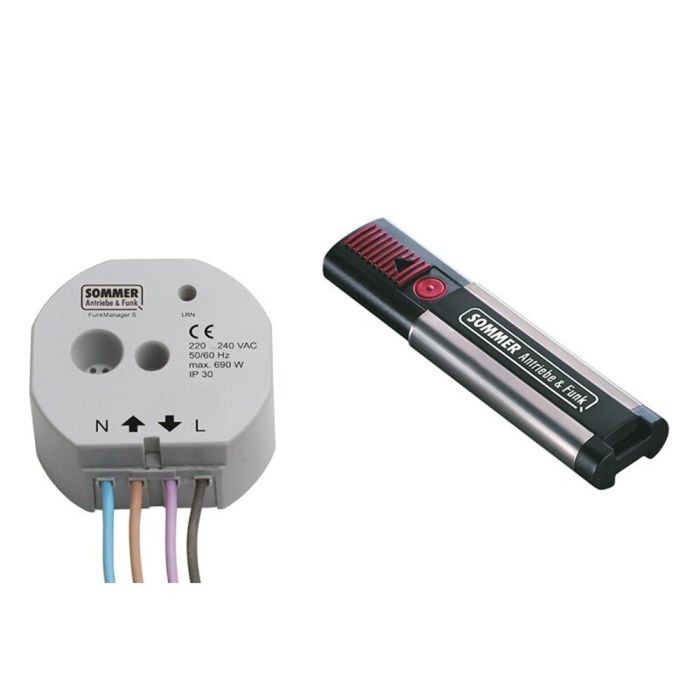

Radio receiver FunkManager S in set

FunkManager S set | control for tubular motors, IP 30 ML | flush-mounted | incl. 1x 4020V000
Article number
5990V000
  • programmable via radio control system for controlling roller shutters, blinds and awnings
  • for flush mounting (deep standard socket)
  • not compatible with Telecody, ENTRAsys and ENTRApin
  • Coding: Somloq Rollingcode FM 868.8 MHz
  • Rated voltage: AC 230 V ±10 %
  • Rated frequency: 50/60 Hz
  • Relay output: 4 A, 50/60 Hz
  • Dimensions: 48 × 51 × 26.5 mm
  • Operating mode: targeted OPEN and CLOSE
  • Degree of protection IP30
  • including 4-command handheld transmitter Classic (# 4020V000)
Technical data
Radio frequency 1868,800 MHz Somloq
loading spinner
Type Description Language File extension File size

You can find further download documents, certificates and declarations of conformity in our download area.


Manufacturer

SOMMER Antriebs- und Funktechnik GmbH

Hans-Böckler-Straße 27

73230 Kirchheim unter Teck

DE

https://www.sommer.eu

Product Safety

Produktsicherheit Icon

Further information in the manual, skilled mechanic required for installation.
