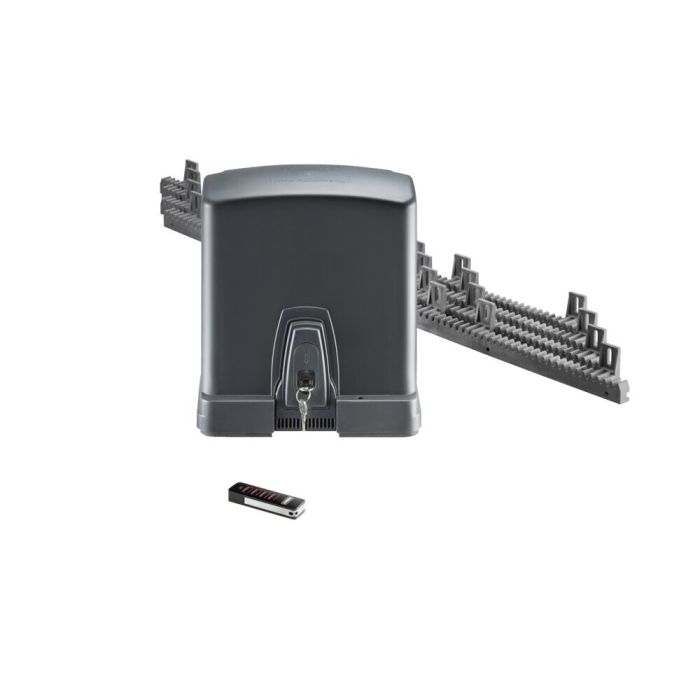

Sliding gate operator RUNner set
RUNner set | 868,95 MHz SOMMER version | anthracite power plug Schuko | incl. 1x 4019V000 4x S10861-00001
Article number
S11813-00001
- RUNner sliding gate operator
- Motor control unit
- SOMup4 S2 radio receiver (FM 868.95 MHz SOMloq2, 40 radio memory positions), pluggable
- Slot for Memo memory extension (450 radio commands)
- Transmitters can be programmed and deleted and information on the radio receiver viewed via the SOMlink S2 service interface.
- Pearl Vibe 4-command handheld transmitter (# 4019V000) with noticeable feedback of radio commands via vibration
- 4 m plastic rack with steel core incl. mounting material (expandable to max. 8,000 mm)
| Gear dimension | Modul 4 / 19 Zähne |
|---|---|
| Radio frequency 1 | 868,950 MHz SOMloq2 |
| Radio memory locations | 40 |
| Max. torque | 20 Nm |
| Transmitter management | SOMloq2 868,3 / 868,95 / 922,5 MHz nur wenn MEMO-Steckplatz vorhanden |
| Protection class | I |
| IP protection | IP 54 |
| Max. travel length | 8000 mm |
| Max. opening speed | 210 mm/s |
| Standby power consumption | 0,50 W |
| Nennstromaufnahme | 0,5 A |
| Nominal voltage | 230 V |
| Nenn.Spann.Bereich 2 | 220-240 V |
| Rated voltage range 1 | 220-240 V |
| Nominal frequency | 50-60 Hz |
| Max. gate weight | 600 kg |
| Duty cycle | ED 40% S3 |
| Temperature min. | - 30 °C |
| Temperature max. | 50 °C |
| Type | Description | Language | File extension | File size |
|---|
You can find further download documents, certificates and declarations of conformity in our download area.
Manufacturer
SOMMER Antriebs- und Funktechnik GmbH
Hans-Böckler-Straße 27
73230 Kirchheim Teck
DE
Product Safety
Further information in the manual, skilled mechanic required for installation.
