Swing gate operator twist 350 rapido set 2-leaf
twist 350 rapido set 2-leaf | 868,95MHz SOMMER version | anthracite power plug Schuko | incl. 1x 4019V000
Article number
S12713-00001

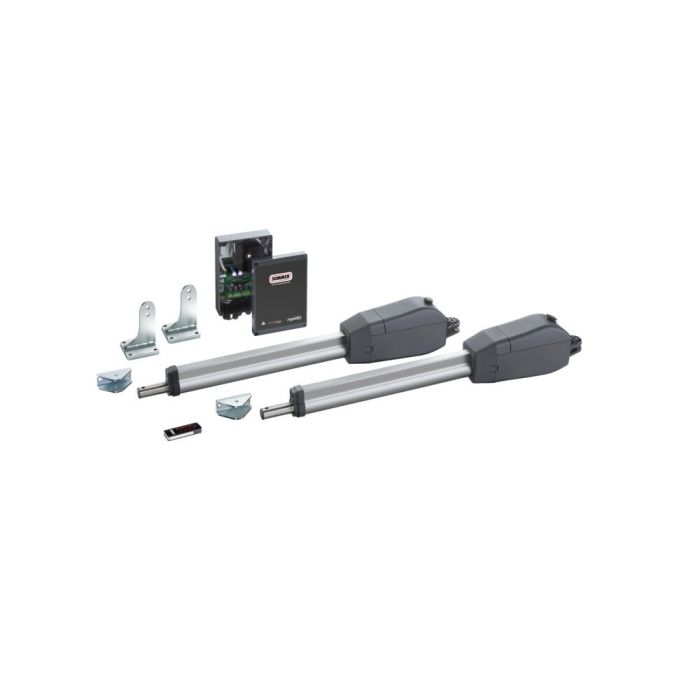

- Two twist 350 rapido swing gate operators (can be used universally for DIN left and DIN right)
- Post and gate leaf fittings
- Control unit DTA-1 in housing (IP65), Dimensions: 250 × 175 × 75 mm
- SOMup4 S2 radio receiver (FM 868.95 MHz SOMloq2, 40 radio memory positions), pluggable
- Slot for Memo memory extension (450 radio commands)
- Pearl Vibe 4-command handheld transmitter (# 4019V000) with noticeable feedback of radio commands via vibration
- Transmitters can be programmed and deleted and information on the radio receiver viewed via the SOMlink S2 service interface.
- Product overview
| Radio frequency 1 | 868,950 MHz SOMloq2 |
|---|---|
| Radio memory locations | 40 |
| Max. torque | nicht relevant/zutreffend Nm |
| Transmitter management | SOMloq2 868,3 / 868,95 / 922,5 MHz nur wenn MEMO-Steckplatz vorhanden |
| Protection class | I |
| IP protection | IP 44 |
| Standby power consumption | 3,80 W |
| Nennstromaufnahme | 0,5 A |
| Nominal voltage | 230 V |
| Nenn.Spann.Bereich 2 | 220-240 V |
| Rated voltage range 1 | 220-240 V |
| Nominal pulling force | 830 N |
| Nominal frequency | 50-60 Hz |
| Max. pull and pushing force | 2500 N |
| Max. gate inclination | 0 % |
| Max. gate weight | 300 kg |
| Max. opening angle | 121 ° |
| Duty cycle | ED 40% S3 |
| Temperature min. | - 30 °C |
| Temperature max. | 70 °C |
| Type | Description | Language | File extension | File size |
|---|
You can find further download documents, certificates and declarations of conformity in our download area.
Manufacturer
SOMMER Antriebs- und Funktechnik GmbH
Hans-Böckler-Straße 27
73230 Kirchheim Teck
DE
Product Safety
Further information in the manual, skilled mechanic required for installation.
