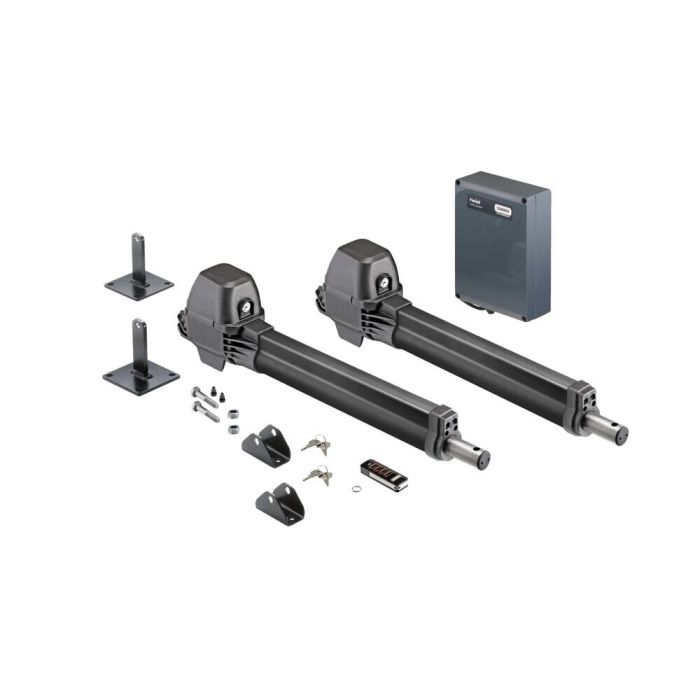

Swing gate operator twistM+ S3 black Set 2-leaf

The powerful swing gate operator for gates with a leaf width of up to 2.5 m.

Article number

S15144-00001

twist M+ S3 black swing gate operator (universally usable for DIN left and DIN right)
Post and gate leaf fitting
DST-A 24 controller in housing (IP65), dimensions: 250 × 175 × 75 mm
Radio receiver SOMup4 S2 (FM 868.95 MHz SOMloq2, 40 radio memory slots, antenna connection), pluggable
Slot for memory expansion Memo (450 radio commands)
4-command handheld transmitter Pearl Vibe (# 4019V000) with tactile feedback of radio commands through vibration
Transmitters can be programmed and deleted via the SOMlink S2 service interface and information about the radio receiver can be called up.

Technical data
Radio frequency 1	868,950 MHz SOMloq2
Radio memory locations	40
Transmitter management	SOMloq2 868,3 / 868,95 / 922,5 MHz nur wenn MEMO-Steckplatz vorhanden
Protection class	I
IP protection	IP 44
Standby power consumption	0,50 W
Nennstromaufnahme	1,0 A
Nenn.Spann.Bereich 2	220-240 V
Rated voltage range 1	100-240 V
Nominal pulling force	660 N
Nominal frequency	50-60 Hz
Max. pull and pushing force	2000 N
Max. gate inclination	10,0 %
Max. gate weight	300 kg
Max. opening angle	120 °
Duty cycle	ED 15% S3
Temperature min.	- 25 °C
Temperature max.	65 °C
