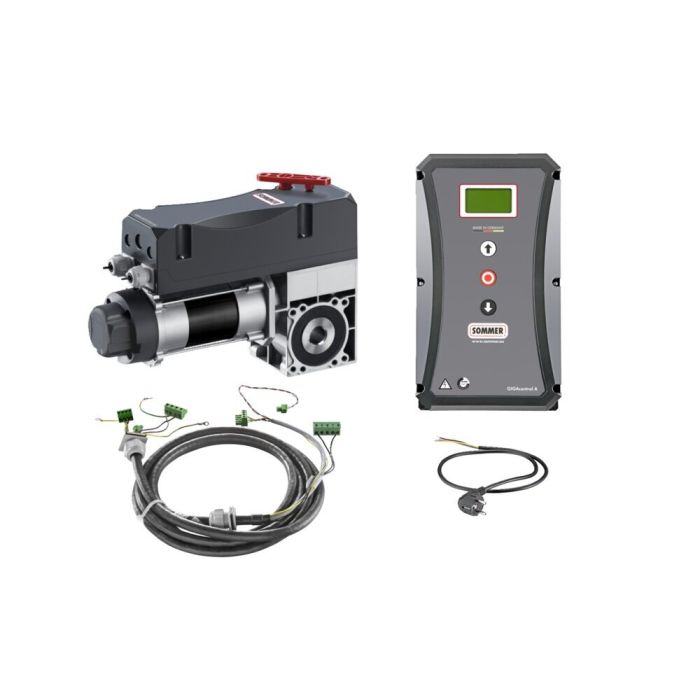

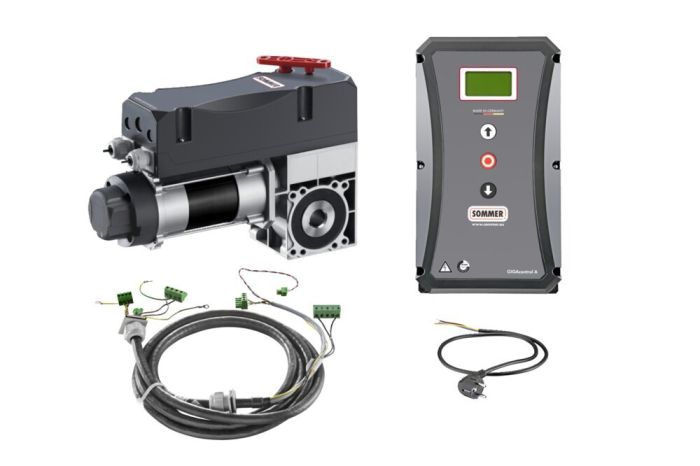

Industrial door operator GIGAsedo 024.100 DXFS0 Set
GIGAsedo 024.100 DXFS0 Set | 10-35rpm/100Nm/0,55kW, declutch | Ø25,4mm, E=14 | integrated frequency converter,length 7m
Article number
S14125-00001
GIGAsedo 024.100 DXFS0
- 10–35rpm/100Nm/0.55kW
- Emergency release
- With integrated frequency converter
- Pull rope, length 7 m
GIGAconrol A control unit
- Connection cable 7 m
- Power cable 1.3 m with
- Schuko angle plug
- Without radio receiver
| Output speed | 10 rpm |
|---|---|
| Max. torque | 100 Nm |
| Continuous sound pressure level | < 75dBA |
| IP protection | IP 54 |
| Nominal voltage | 1~230 V |
| Nominal frequency | 50-60 Hz |
| Duty cycle | ED 60% S3 |
| Operator type | Sectional door operator |
| Limit stop range | 14 |
| Hollow shaft Ø | 25,4 mm |
| Temperature min. | - 05 °C |
| Temperature max. | 60 °C |
| Type | Description | Language | File extension | File size |
|---|
You can find further download documents, certificates and declarations of conformity in our download area.
Manufacturer
SOMMER Antriebs- und Funktechnik GmbH
Hans-Böckler-Straße 27
73230 Kirchheim unter Teck
DE
Product Safety
Further information in the instructions, qualified electrician required for installation, qualified mechanic required for installation.
