Rail unit GIGAline
Applications in private/industrial settings as well as in collective and underground parking garages. The rail unit is versatile and can be easily shortened or extended.

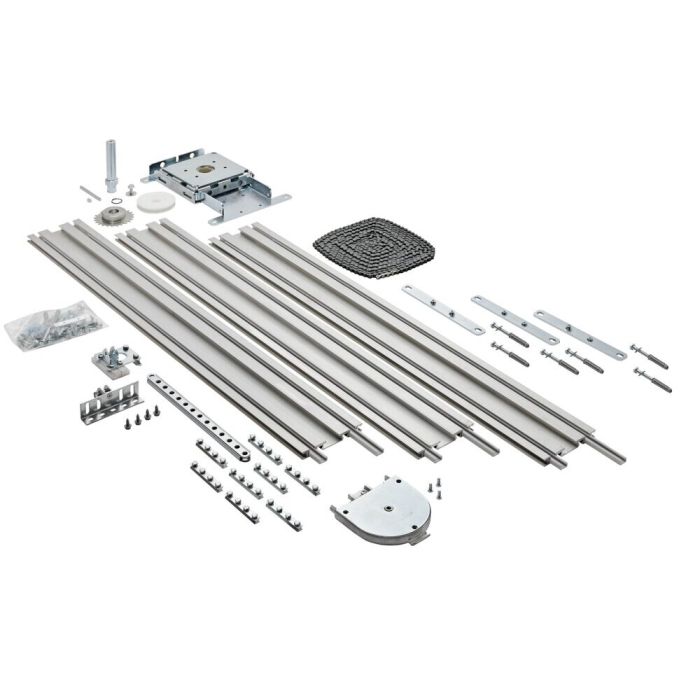

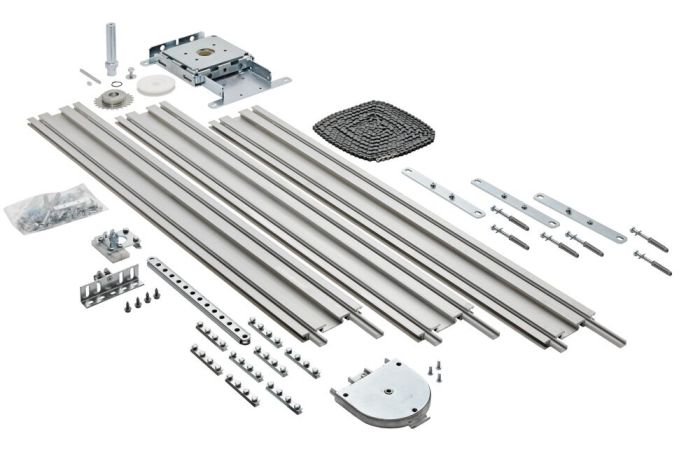

The 3-part rail unit consists of very flat extruded aluminum profiles that are connected to each other. SOMMER uses a tear-resistant steel roller chain that runs very quietly in special plastic guides and has proven itself under extreme loads. The system features a spring-loaded chain tension to compensate for external influences.
- The rail is driven by an industrial door operator with frequency inverter
- Solid extruded aluminum rail
- Installation height approx. 20 mm for low headroom situations
- Chain and motor are spring-mounted
- Suitable for GIGAsedo operators with frequency inverter
- The tear-resistant steel roller chain is designed for extreme demands
With the GIGAsedo 024.100 DXFS0 industrial door operator set (E=14), a maximum travel distance of 4,200 mm can be achieved.
For a longer travel distance, an operator set with a larger limit switch range is required, which is available on request.
| Type | Description | Language | File extension | File size |
|---|
You can find further download documents, certificates and declarations of conformity in our download area.
Manufacturer
SOMMER Antriebs- und Funktechnik GmbH
Hans-Böckler-Straße 27
73230 Kirchheim Teck
DE
Product Safety
Further information in the manual, skilled mechanic required for installation.
