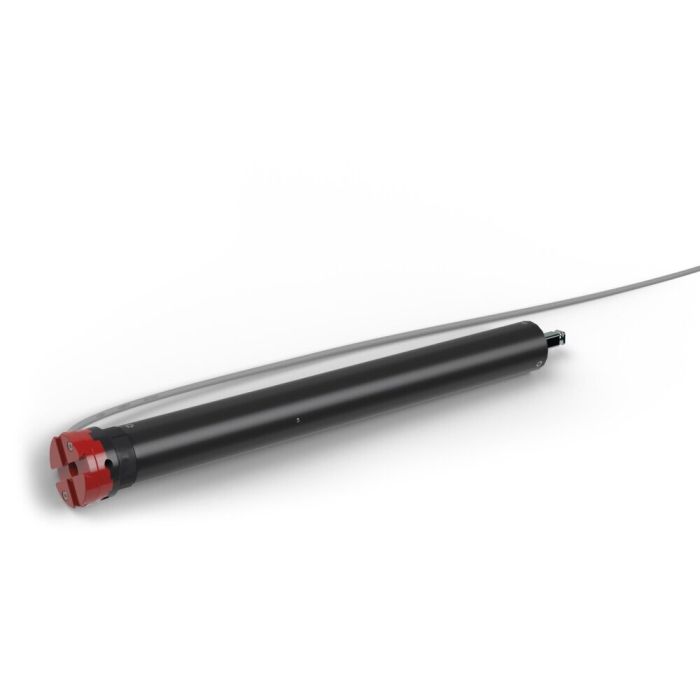

Tubular motor A 50/12/45 | Torque 50Nm, speed 12min −1
tubular motor A 50/12/45 | 230V 50-60Hz SOMMER | wall anchor cranked | incl. adapter set 60 mm octagonal shaft
Article number
S12407-00001
- AC 230 V, 50 Hz
- Cable length 1.9 m
- Torque 50 Nm, speed 12 min −1
- Incl. offset wall anchor (perforation distance 48/60 mm) adapter for 60 size octagonal tube
| Max. torque | 50 Nm |
|---|---|
| Protection class | I |
| IP protection | IP 44 |
| Nominal voltage | 230 V |
| Rated voltage range 1 | 220-240 V |
| Nominal frequency | 50 Hz |
| Duty cycle | KB 4 min. |
| Diameter | 45 mm |
| Speed | 12 rpm |
| Type | Description | Language | File extension | File size |
|---|
You can find further download documents, certificates and declarations of conformity in our download area.
Manufacturer
SOMMER Antriebs- und Funktechnik GmbH
Hans-Böckler-Straße 27
73230 Kirchheim Teck
DE
Product Safety
Further information in the instructions, qualified electrician required for installation, qualified mechanic required for installation.
